Planet 50 Meter IR Outdoor Camera/CAM-IR554
[CAM-IR554]

Bs.3.612,60-Iva Incluid

Planet 50 Meter IR Outdoor Camera/CAM-IR554 :: Detalle de Producto :: To meet the demands from worldwide market, PLANET Technology is proud to deliver the long distance analog camera, CAM-IR554. It is one of various camera solutions offered by PLANET for users to fit in different security issues. It can be applied with PLANET Digital Video Recorders or Internet Video Server to create a suitable security environment to protect you and your life.

With high quality Sony CCD, the CAM-IR554 provides clear and sharp image up to 540TVL. Featuring zero-lux illumination with 35 High-Power IR illuminators built around the lens brings the clearest vision at night. Applied the new LED technology, the built-in illuminators ensure high-quality monochrome images in total darkness as far as 50 meters. In addition, the CAM-IR554 IR camera ensures reliable operation in any environment with the Aluminum rugged all-weather waterproof casing.

Application

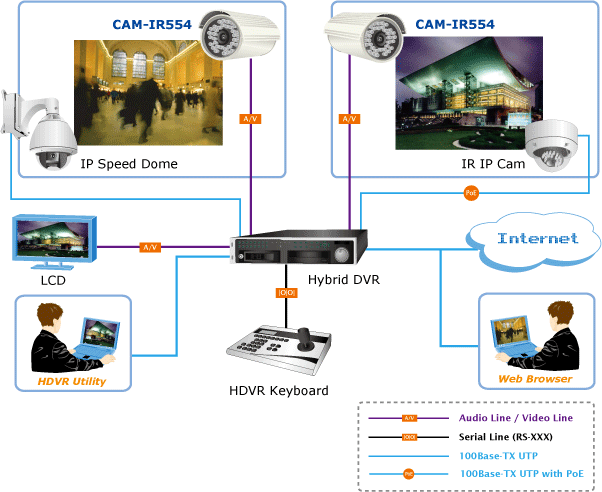

Taking advantage of TCP/IP network conveniences, the surveillance system administrators can combine different kinds of cameras with the PLANET DVR systems to establish the Day / Night surveillance applications. Moreover, you can use the central management software Cam Viewer to manage the IP cameras in the same platform simultaneously.

Key Features

• Bullet color camera with SONY 1/3“CCD sensor
• Embedded Digital Signal Processor (DSP) chip-set for image control
• Pixel number : NTSC=380K / PAL= 440K (High Resolution)
• High sensitivity, low smear, high anti-blooming and high S/N ratio
• Built-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (AWB)
• Built-in Anti-Aliasing and IR-Pass (850nm) optical filter

Model	CAM-IR554
General
Sensor	SONY 1/3“ CCD High Resolution
Effective Picture Elements	NTSC: 768494, PAL: 752582(H*V)
Horizontal Resolution	540 TV lines
Minimum Illumination	0 LUX with built-in IR-LED
S/N Ratio	More than 48 dB
Auto Electronic Shutter	NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
Gain Control	Automatically
White Balance	Automatically (2500K~9500K)
Gamma Characteristic	0.45
Lens Furnished	8.0 mm / F1.6
View Angle	H: 33 Degree, V: 25 Degree
Synchronous System	Internal, Negative sync.
Video Output	1 Vp-p Composite Video / 75 Ohms.
Water Resistance	IP-66
IR LED	35 Units of 850nm High Power IR LED.
IR Project Distance	50 Meters
Dimensions	110mm(φ) *230mm (L)
Environment
Power Supply	DC 12V / 1.5A , 50/60 Hz
er Consumption	Pow8.5W
Dimension (W x D x H)	110mm(φ) * 230mm (L)
Weight	1.2kg
Operating Temperature	-10℃ to 50℃ (14℉ to 122℉)

Para obtener más información, visite la página del producto.

:: Si el producto tiene su precio en 0,00 (Cero) es posible que este agotado o aun no se haya cargado al sistema, tambien ese producto puede ser traido expresamente (Contra Pedido), consulte a nuestros operadores ::

::: POR FAVOR CONSULTE PRECIOS Y DISPONIBILIDAD ANTES DE REALIZAR SU COMPRA ::: Teléfonos : 0212 576 4667 / 0212 8808002 / 0416 6076958 / 0412 6076958 /

Atención en Línea: braincorp@hotmail.com , cesar.gamboa.braincorp@hotmail.com, fermar53@hotmail.com, mirianesther@hotmail.com, alberto_braincorp@hotmail.com braincorp2001@yahoo.com mirianesther@yahoo.com :::

Brochure de Producto
